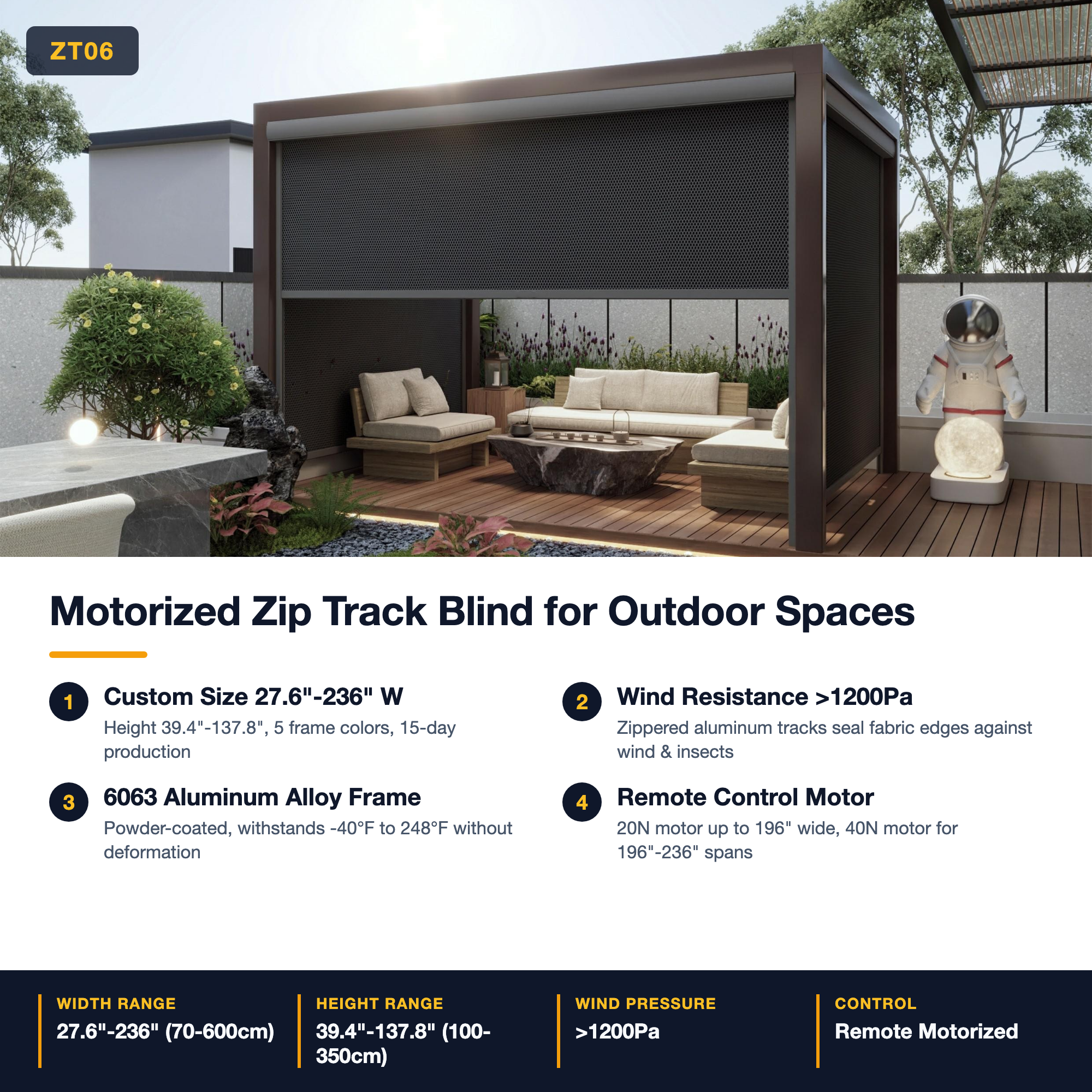

The ZT06 is a motorized outdoor blind whose fabric edges zip into aluminium side tracks, so it holds in wind (Class 10 to JG/T 274-2018, tested past 1,200 Pa) and seals out insects. Made to measure for patios, pergolas and balconies from 70 to 600 cm wide; online estimates from $405. Sold as a pre-order with a 50% deposit; US orders arrive about 5–6 weeks after you approve the sizes (fast-ship freight), Europe 7–9 weeks.
“We make the ZT06 so the patio stays yours when the wind picks up — no flapping fabric, no mosquitoes, no rolling it away every evening. Send your sizes and we check each one with you before anything is cut.”
— Kelly West, HyberShade · write to us
US outdoor zip track pre-orders arrive about 5–6 weeks after you approve the FitCheck — fast-ship freight plus a scheduled truck delivery for the long rails (Europe: 7–9 weeks). Pick a date and see the actual days.
Working estimate from our published lead times — the confirmed dates come with your quote.
Transform your outdoor space into a comfortable, protected area with this custom-sized motorized zip track blind. The innovative zipper-in-track design creates an enclosed screen that is tested to Class 10 under JG/T 274-2018 (static wind pressure exceeding 1,200 Pa) while simultaneously preventing insects from entering. Unlike traditional outdoor shades, the zippered edges eliminate gaps and flapping, ensuring your patio or pergola stays enclosed and comfortable even in gusty conditions. Built with 6063 aluminum alloy throughout, the frame features powder-coated finishing for long-lasting rust and corrosion resistance. The specialized inner track material maintains structural integrity in temperature extremes from -40°F to 248°F, making it suitable for diverse climates. The motorized system includes a 20N tubular motor controlled by remote, with integrated safety features and a weighted bottom rail for smooth, stable operation. Each blind is custom manufactured to your specifications: width from 27.5 to 94.5 inches, height from 39 to 94.5 inches. Select your preferred frame color and mounting style during order. Measure your installation area carefully—refer to standard measurement practices for zip track blinds to ensure proper fit. Production time is 15 days from order confirmation.
| Material | 6063 Aluminum Alloy |
| Finish Type | Powder Coated |
| Color Options | White, Dark Gray, Light Gray, Brown, Black |
| Width Range | 27.5-94.5 inches (70-240cm) |
| Height Range | 39-94.5 inches (100-240cm) |
| Control Method | Remote Control (20N Tubular Motor) |
| Mounting Type | Recessed or Surface Mount |
| Wind Resistance | Class 10 to JG/T 274-2018 (>1,200 Pa static pressure) |
| Temperature Range | -40°F to 248°F (-40°C to 120°C) |
| Headbox Dimensions | 4.8 x 4.8 inches (122 x 122mm) |
| Customization | Made to Measure |
| Lead time | Approx. 5–6 weeks door-to-door in the US (fast-ship freight), 7–9 weeks to Europe; pre-order with 50% deposit |
Two people, an afternoon, ordinary tools. Every step below comes from the manual in the box — tick them off as you go, and if anything looks different from the picture, ask the assistant.

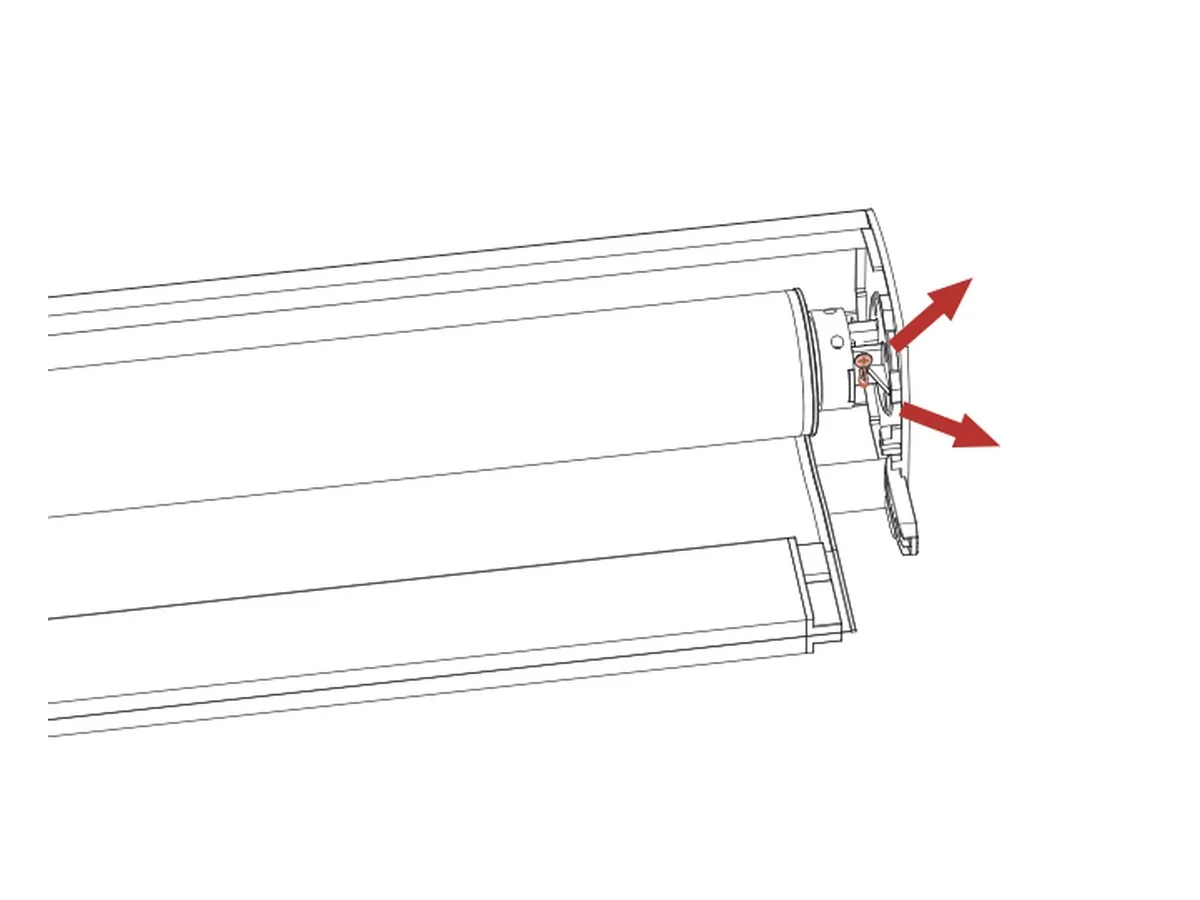

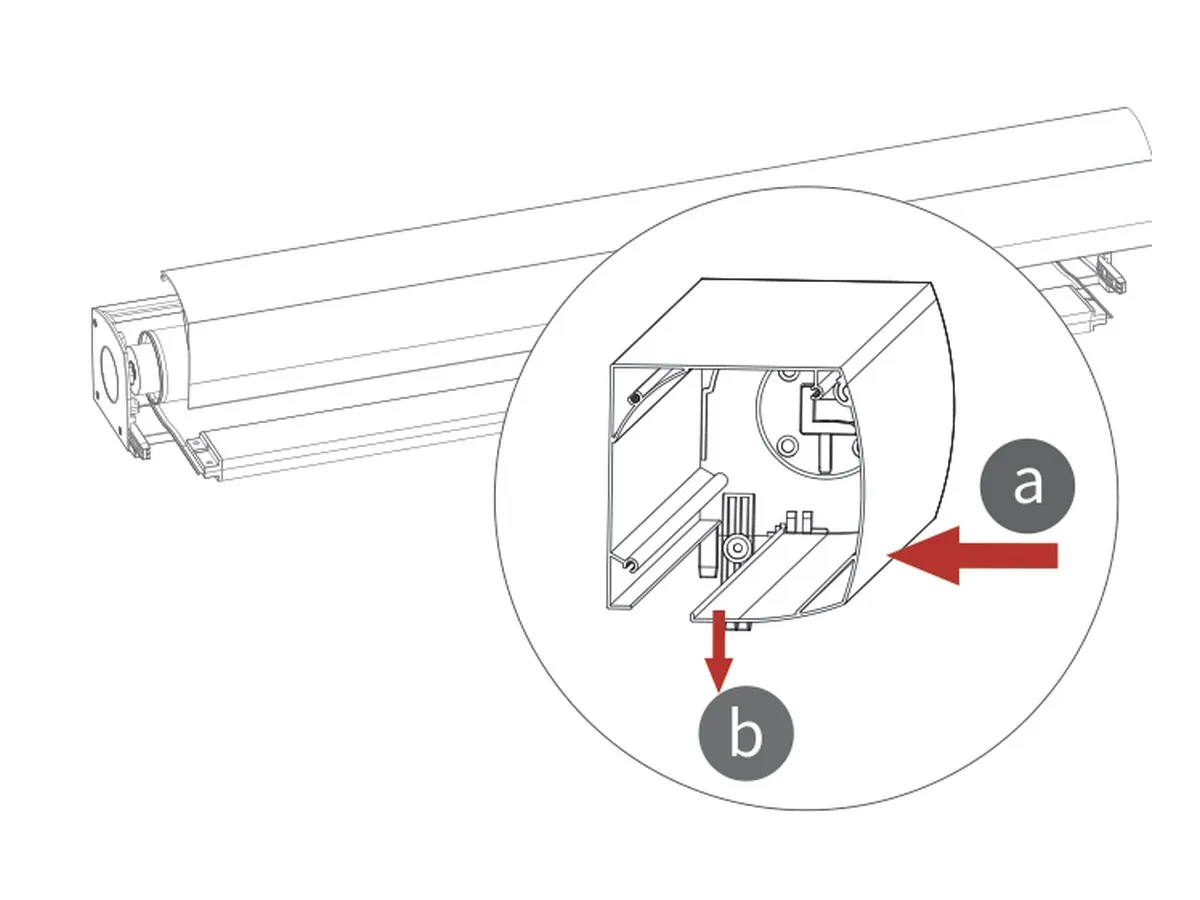

Headrail with the fabric inside, side rail A and B, the accessories bag, the remote and the motor limiting bar. Press the front box in and swing it open, then lift the fabric roller out of the headrail so the box is light to handle.
If the motor cable can't leave the box where it sits, drill one Ø8 mm hole in the rear box for it. Skip this if the cable already has a clear way out.

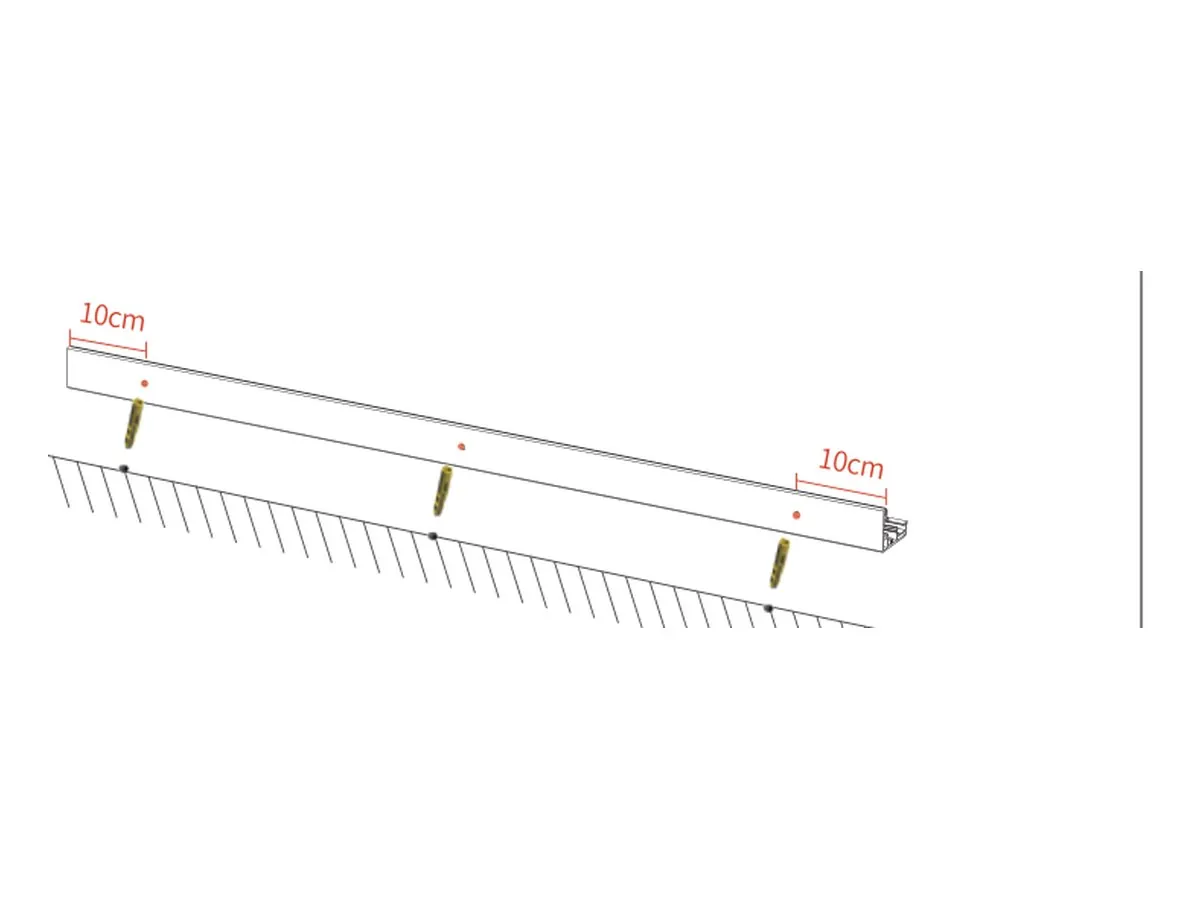

Hold the guide base against the wall, check it with the level and pencil a line. Drill 10 cm from each end, then every 40–50 cm along the base. Concrete: drill and set expansion plugs first.

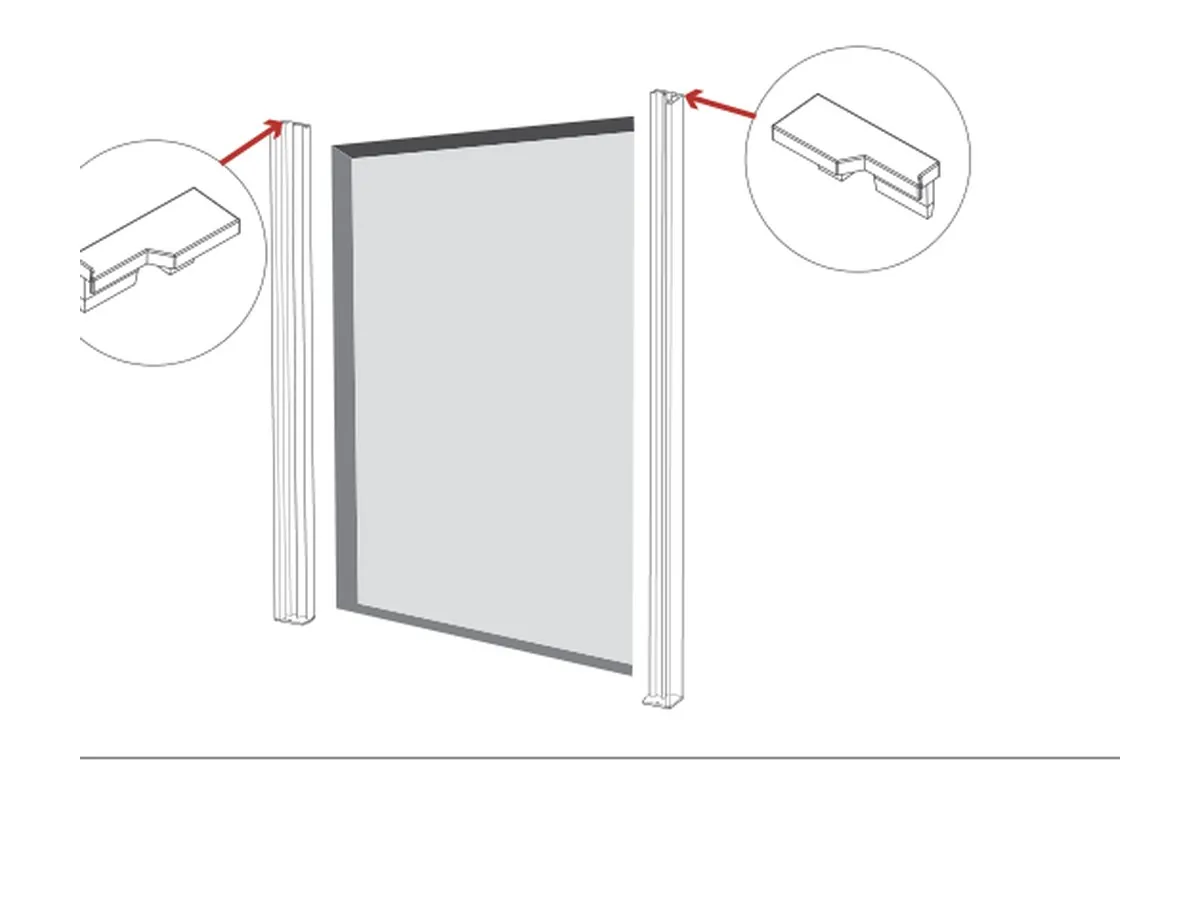

Screw the side rails to the marked line and fit the upper caps. With a second pair of hands, sit the rear box on the guide bases and tighten the side caps. Check the rails are plumb and the same distance apart at the top, middle and bottom.

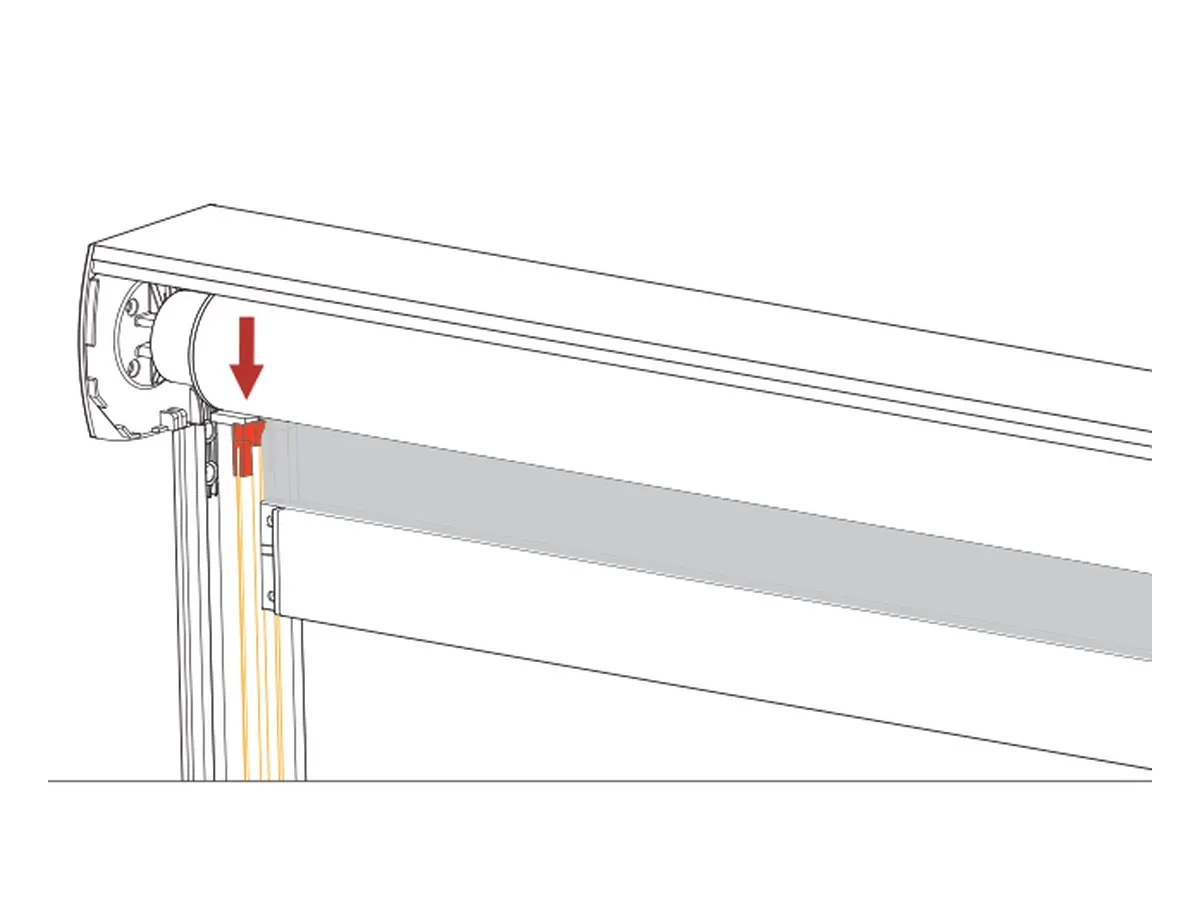

Fit the fabric roller back into the headrail (screws and clips both sides). Thread the fabric's zipper edge into the inner track rail, slide the inner rail into the side rail, add the mute sponges and close the guide covers.

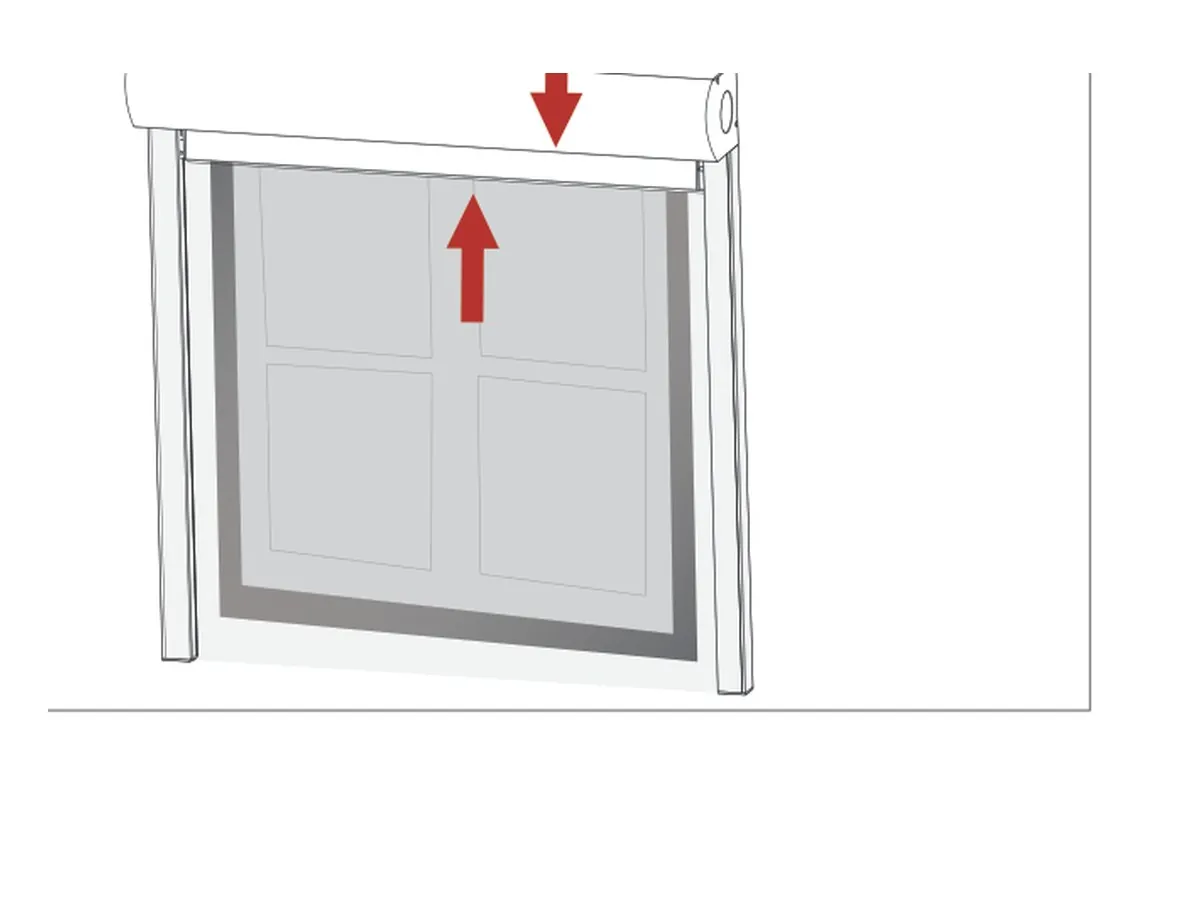

Connect power. Set the bottom limit first, then the top. Run it down and up once, pressing the fabric gently into the side rails on the way. Close the front box, seal the cable hole against water. Done — go and sit under it.
Product walkthrough — real showroom footage
Build quality up close: aluminum, stainless steel & nylon parts
Pick a product, enter your measurements, get an indicative price range in seconds. Final quote confirmed by our team before production.
First custom order: $50 off with code HS50 — mention it in the quote form.
Outdoor zip track blinds are built to your sizes and travel as freight: about 5–6 weeks to a US address, 7–9 weeks to Europe. Lock in your slot now with a 50% deposit on the estimate above — nothing is cut until you approve the written FitCheck.
Need it sooner? Air freight is available on request, quoted at cost — tick the rush box in the quote form. Wider than 240 cm (up to 6 m)? We quote those individually.
Installation requires basic DIY skills. You'll need a drill, level, measuring tape, and screwdriver. The system includes mounting brackets that attach to wall or ceiling. Detailed instructions are provided. Professional installation is recommended for openings above 3m width.
The ZT06 is rated wind class 10 under JG/T 274-2018 and tested past 1,200 Pa static pressure (a test class, not a Beaufort wind-force number). Side channels lock the fabric in place, preventing billowing or lifting. Suitable for exposed balconies and coastal areas.
Multiple fabrics available including PVC-coated polyester, mesh, and blackout materials. Most options provide water resistance suitable for rain protection. Fabric blocks wind while allowing operation in wet conditions. Contact us for specific fabric properties.
The ZT06 is sold as a pre-order: you pay a 50% deposit on the online estimate, approve our written FitCheck within 48 hours (free to change or cancel until then, deposit fully refunded), and the balance is invoiced before dispatch. Production takes about 15 working days after that approval. Delivery is tracked door-to-door freight with duties handled (DDP) and a scheduled truck delivery for the long rails; US orders arrive about 5-6 weeks after confirmation on our fast-ship line, Europe 7-9 weeks. Air freight can be quoted at cost for urgent projects. Full details on our Shipping & Returns page.
Before production starts, we send detailed measurements for your confirmation within 48 hours. Once you approve, production begins. Custom-made blinds cannot be returned or exchanged after production. Measure twice and verify the confirmation sheet carefully.
Send your measurements — we confirm final production sizes before manufacturing.
